vulcanization production line

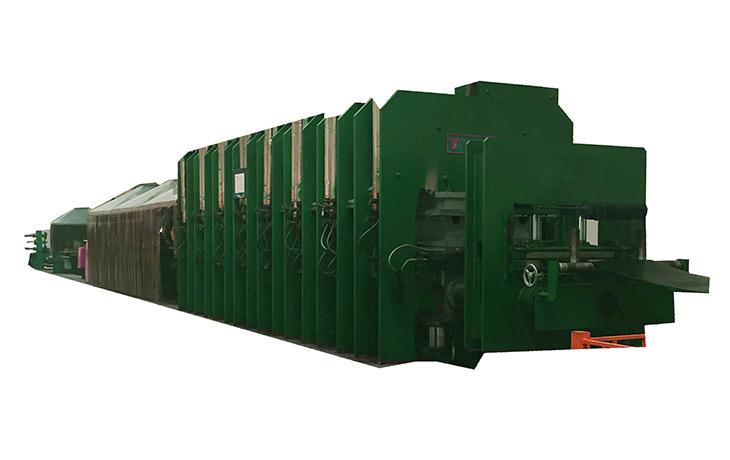

Fabric core conveyor belt flat vulcanization production line

Technical parameters / name

Performance parameter 1000X10000X2

1200X10000

(12600)X2

1400X10000

(12600)X2

1600X10000

(12600)X2

1800X10000 2200X10000 2400X10000
Nominal mounding forceMN 35 42/52.92 49/61.74 56/70.56 63 77 84

Hot plate specifications

(LXW)mm

1000X10000

1200X10000

(12600)

1400X10000

(12600)

1600X10000

(12600)

1800X10000 2200X10000 2400X10000
Hot plate unit pressureMPa 3.5 3.5 3.5 3.5 3.5 3.5 3.5
Cylinder diametermm 500 420 500 600 600 600 650
Number of cylinders 10 18 16 16/20 16/20 16 16/18
Clamping forceKN 500 700 900 1100 1200 1500 1700
Tensile forceKN 500 700 900 1100 600 750 850



1200X12600X2 Batching label specification(2 sets)
Number Model Name Quantity Material Remarks
1 GB/T799-1998 Anchor bolt M20X500 20 Level 4.8
2 GB/T5780-2000 bolt M12X50 16 Level 4.8
3 GB/T41-2000 screw nut M12 8 Level 5
4 GB/T41-2000 screw nut M20 20 Level 5
5 GB/T95-2002 washer12 24 100HV
6 GB/T95-2002 washer20 20 100HV
7 STO40-50 VT4 45X45U Safety chuck (passive end) 2 Finished product Chaoyang Sanchuang
8 STW40-50 VT4 45X45U+M-8/B(Powered) Safety chuck (active end) 2 Finished product Sprocket pitch 19.05 teeth 42
9 GB/T1243-1997 Chain (12A) 105 saves 2m
2 Finished product Pitch 19.05
10 TK58-Y2.2-4P-15.22-M1-I-A Spiral bevel gear reducer 2 Finished product Zhejiang Tongli
11 GB/T37-1988 T-bolt M12X60 8 Level 8.8
Fiction:Yang Chengren   Date:Jan.10th 2018    Review:           Date:




1200X12600X2 batcher plus parts details(two sets)
Number Drawing number Name Quantity Material   Remarks
1 TS1802-09-00 Rolling device (left drive) 2 Component
2 TS1711-2-1-00 Stand 2 Weldment
3 TS1711-2-1-1 Bottom plate 2 Q235-A
4 TS1711-2-1-2 Rectangular square tube 4 Q235-A
5 TS1711(左)-2-2-00 Bracket (left drive) 2 Weldment
6 TS1711-2-2-1 Bottom plate 2 Component
7 TS1802-09-01 45 square steel 2 45
8 TS1711-2-3-00 safety cover 2 Q235-A
9 TSG1396-01 Reducer sprocket 2 45
10 TS1415-04-02 T-slot plate 4 Q235-A
Fiction:Yang Chengren  Date: Jan.10th 2018  Reivew:          Date:
